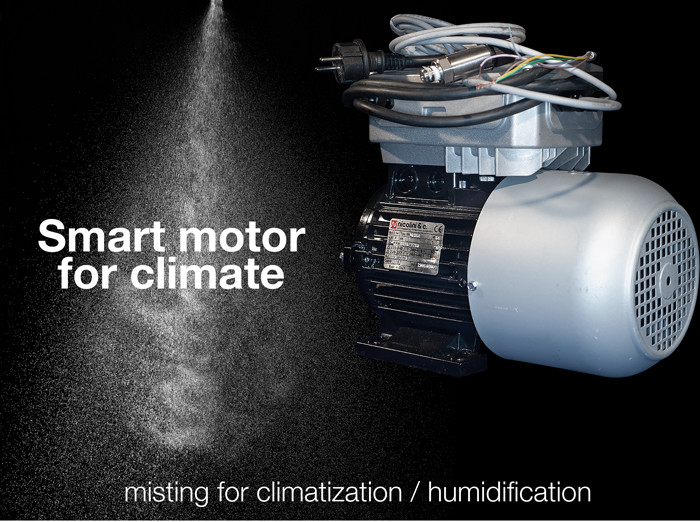

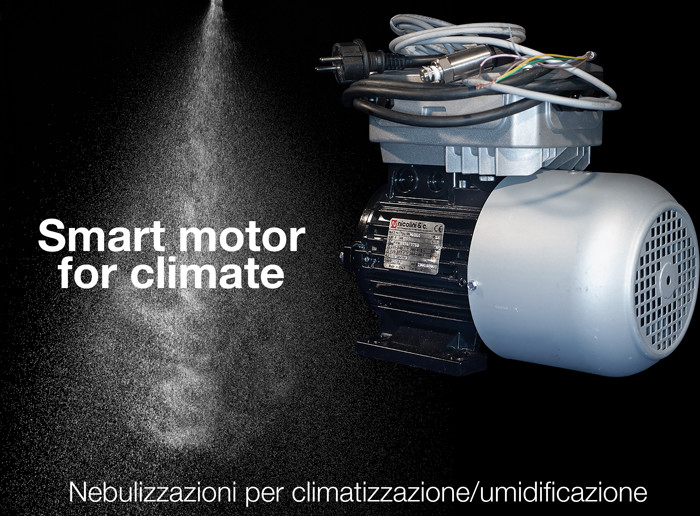

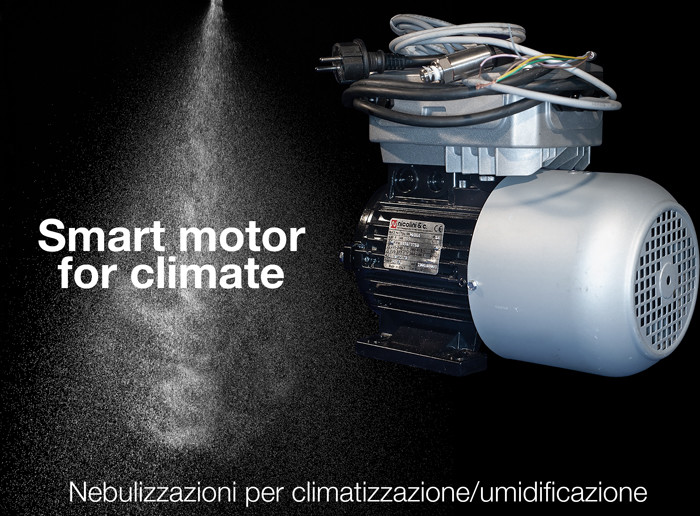

SMART MOTOR FOR CLIMATE




We developed a new motor for all professionals in the misting sector. NICOLINI SMART MOTOR with inverter on housing is a complete solution, which allows a wide range of options and programming for advanced control of misting units.

MISTING FOR AIR CONDITIONING AND HUMDIFICATION
  1. INDUSTRY
  2. OFFICE AND ROOMS DISINFECTION
  3. FARMS AND GREENHOUSES
  4. OUTDOOR LIVING
  5. RESTORATION

SMART MOTOR features
  • designed for singlephase power supply (threephase version available upon request)
  • three power sizes: 1,1 kW 1,5 kW e 2,2 kW
  • motor available as hollow shaft or standard shaft with B14 flange
  • it can be matched with a 1-12 litre/min pump to the customer’s choice
  • plug-in: supplied with cable and plug
  • possibility of adding temperature sensors and other separated control terminals

Electronics on board ensure reaction speed
The INVERTER is incorporated to the motor and is powered by single phase current: it regulates motor rotations by controlling the outgoing quantity of water and keeping constant pressure. Indeed, the inverter is connected to a pressure switch (included in the product) on which to set the desired pressure.

The SMART MOTOR is very efficient thanks to a perfect motor rotations control, a pressure switch accuracy and optimal pump regulation.

Separate ventilation
The motor is equipped with a separate ventilation system controlled by the inverter, which allows the normal cooling even at low rotations.

Control and regulations for countless applications

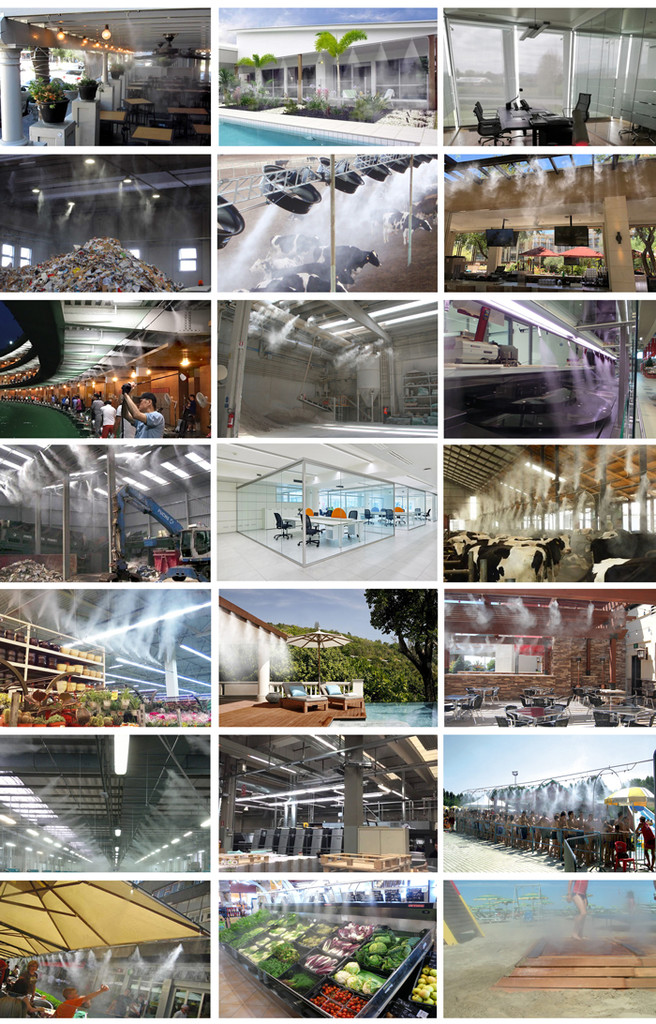

Designed for diversified misting operations on multiple areas at the same time. By adding temperature/humidity sensors, it is possible to automate the functioning at the desired conditions. Misting operations lower the perceived ambient temperature and suppress smell and suspended dust in the air. They allow a soft irrigation and modify humidity in the air.
Several application area:

INDUSTRIAL PROCESSING
For misting systems aimed at lowering temperatures and, at the same time, suppress suspended dust caused by industrial processing.

OFFICE/ROOMS DISINFECTION
For misting disinfection sector: working environment, public places, airports and other transit areas and areas with washable surfaces.

FARMS AND GREENHOUSES
For misting system to be installed into farm and greenhouses. Our motor is perfect also for irrigation systems.

OUTDOOR LIVING
For misting and cooling system of the air in outdoor environment: external areas, gardens, swimming pools, playgrounds, water parks and amusement parks, sport clubs ecc.

RESTORATION
For restoration and hospitality sector: restaurants, café, hotels, resorts ecc.

Call now for info and quotes
+ 39 0522 652820
